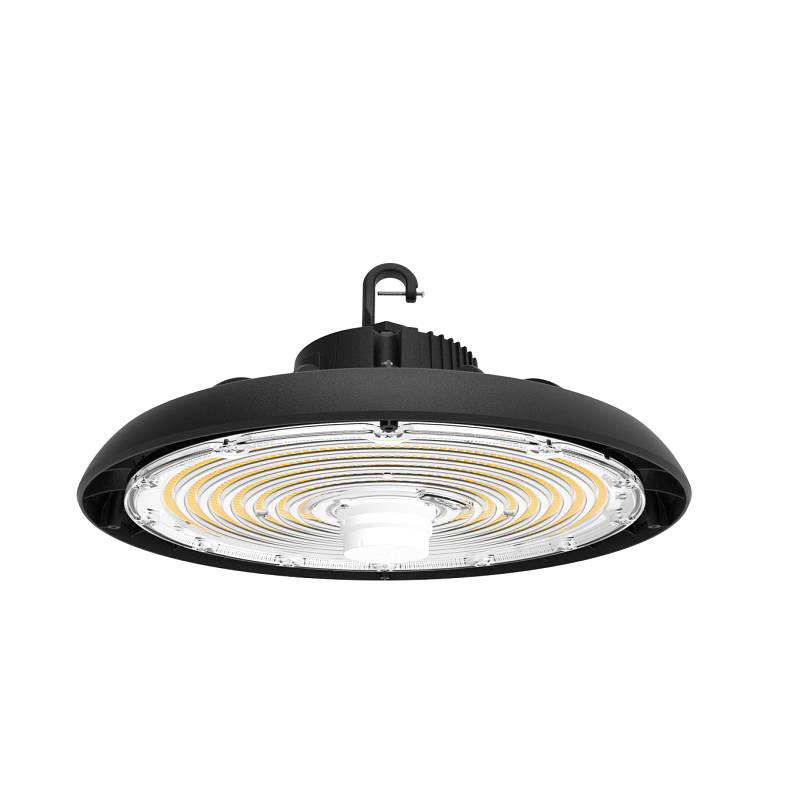

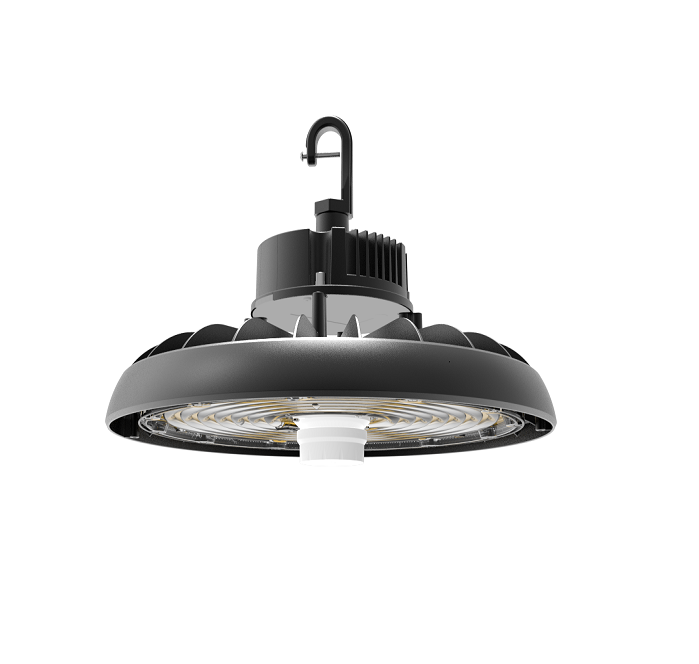

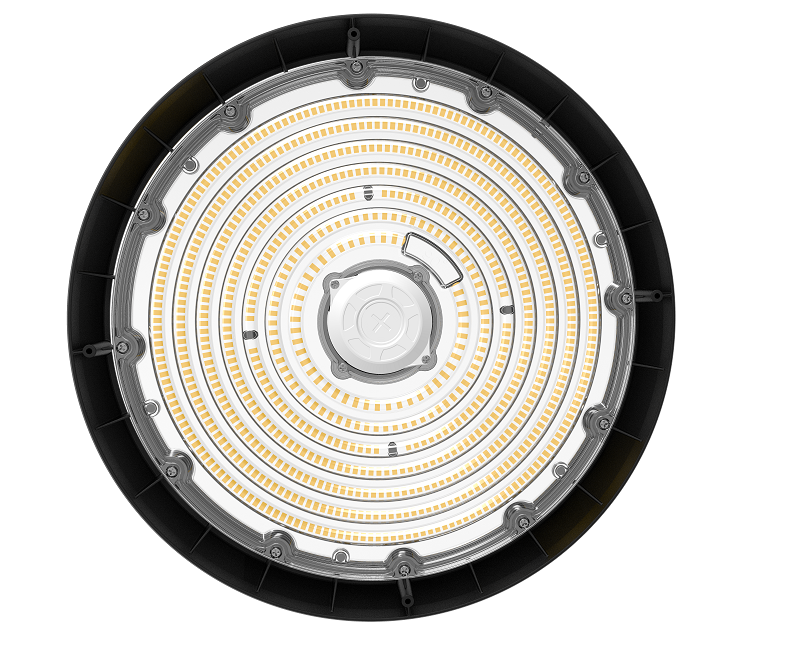

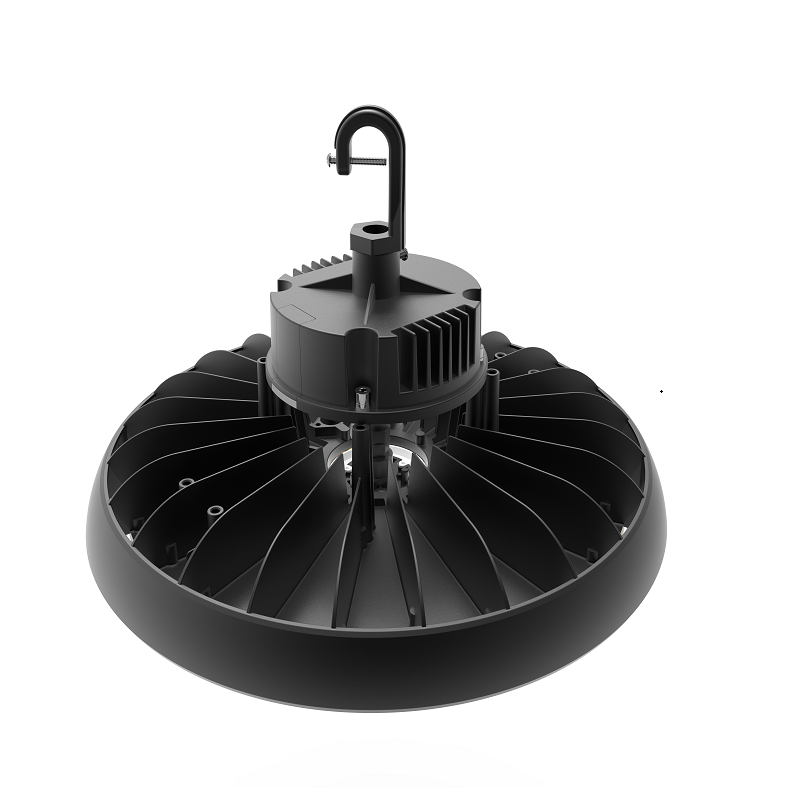

Toptierleds UFO11 LED High Bay, high quality die-cast aluminum housing with an IP65 impermeability rating and high mechanical strength. Available in adjustable powers & CCT of 100W-240W and has an extremely high light efficiency of 150LPW. The device is intended for installation in high and medium ceilings of warehouses, production halls, distribution centers, shops, sports halls and more.
| Products Code |
SS-UFO11-100W |
SS-UFO11-150W |
SS-UFO11-200W |
SS-UFO11-240W |
SS-UFO07-100/120/150W-35/40/50K |
SS-UFO07-150/200/240W-35/40/50K |
| Electrical |
Power |
100W |
150W |
200W |
240W |
150/120/100W Selectable |
240/200/150W Selectable |
| Voltage |
AC120-277V, 50/60Hz, 3470V/480V option |
| Light source |
SMD2835, Ra>80, 50,000hours |
| Efficancy |
150LPW |
| Color temp. |
3500K, 4000K, 5000K Single CCT |
3500/400/5000K Selectable |
| Driver |
PF>0.9, THD<20%, Flicker Free Technology, 6KV |
| Dimmable |
0-10V Dimming |
| Optical |
Diffuser |
PC, UGR<28 |
| Beam angle |
60°, 90°, 120° |
| Construction |
Housing Material |
Die-cast Aluminum |
| Option |
Sensor, Emergency Driver |
| Dimension |
11.16” x 6.78” x 4.87” |
11.16” x 7.13” x 5.22” |
13.36” x 7.13” x 5.22” |
11.16” x 6.78” x 4.87” |
13.36” x 7.13” x 5.22” |
| Mounting |
Installation |
Rings Type, Hook Type |
| Warranty |
Certification |
UL, DLC 5.1 Premium, IP65 Wet location |
| Warranty |
5 Years |
Toptierleds Generation 11 UFO highbay light major featrues:
Housing:
- Compact die-casting aluminum body design
Driver:
- Brand driver with PF>0.9, Flicker Free, surge protection for 6KV/6KV
- Emergency Driver optional （suit for 100W to 240W）
EM Power: 30W
EM Time: 90 minutes
LEDS:
- Maximum Life Expectancy Brand LED chips, CRI>80, 150LPW
Voltage:
- AC120-277V, 50/60Hz
- 347V/480V for option
Dimming:
Beam angle:
- 60°, 90° and 120° degree lens reflector for option
- An external reflector by Aluminum reflector/PC reflector
Sensor:
- Microwave Sensor, PIR Motion sensor, Motion Sensor with Bluetooth Option
Operating Temperature
- Rated for ambient operating temperature -40˚F to 113˚F (-40˚C to 45˚C ).
Certification:
- UL, DLC, FCC, Wet location, CE

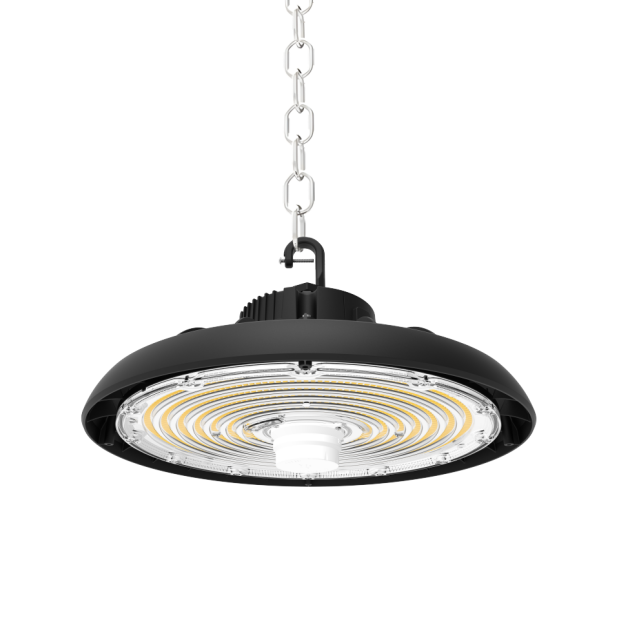

Installation:
- Rings type/Hook mount
- Stem pendent mount
- U bracket mount for wall or pipe install

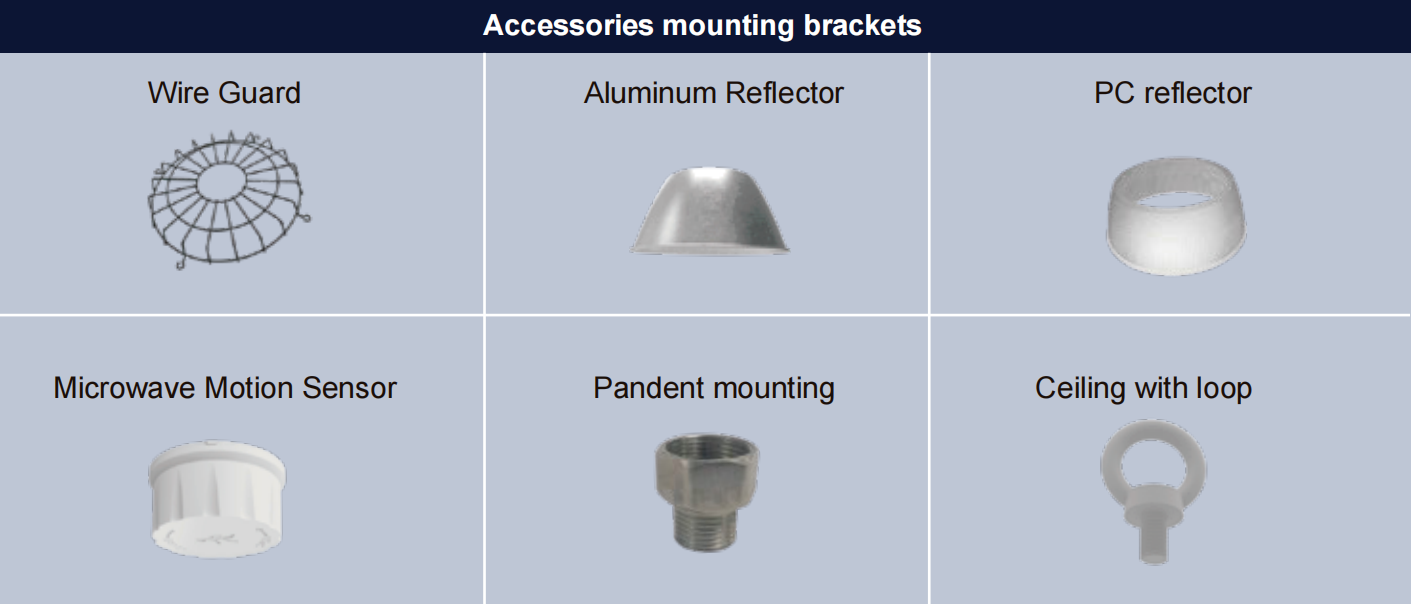

Accessories option:
Application:

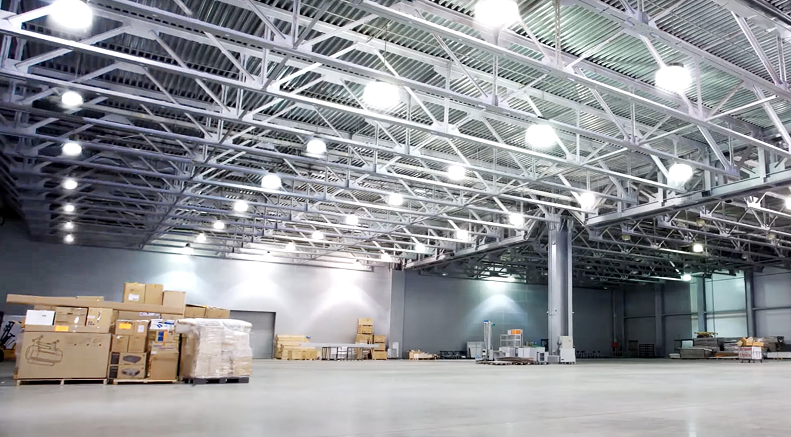

Perfect for illuminating warehouses, gymnasiums, and other industrial applications
