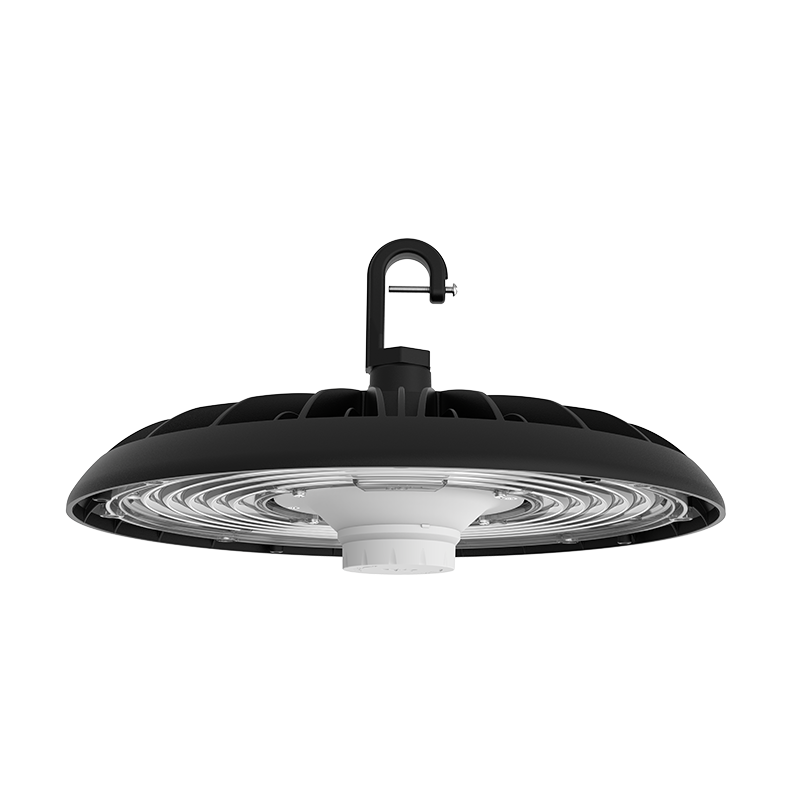

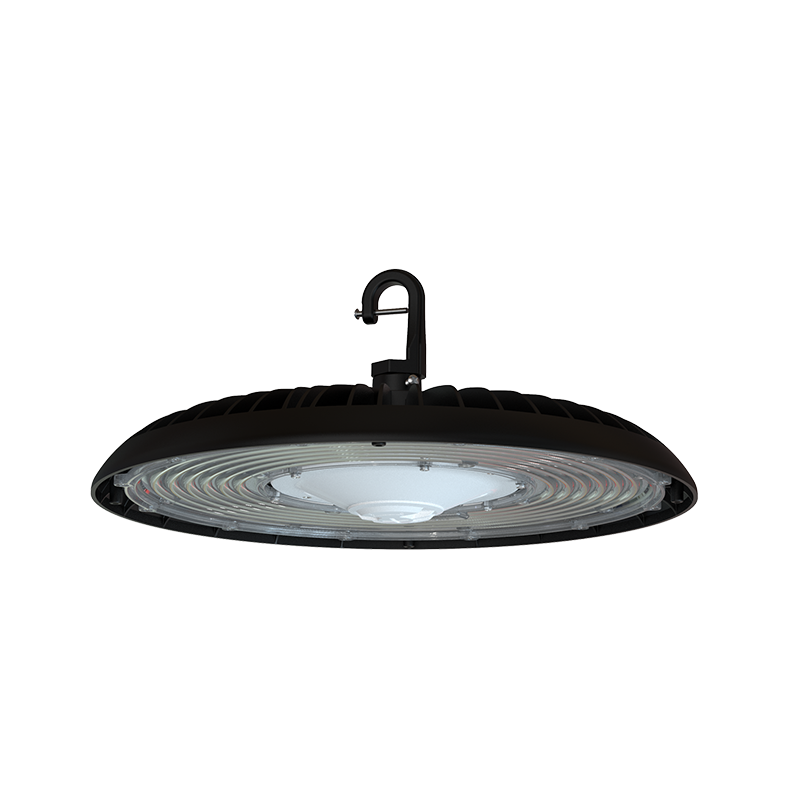

A unique feature for this fixture is the quick disconnected cable, it can quickly seperate the driver from the LED module for easy maintenance. The unit has built-in heat sink and comes with a hook made of die-cast aluminum for a strong and easy installation.
| Products Code |
SS-UFO10-100/80/60W-H -TCP(XX)-Y |
SS-UFO10-150/120/100W-H -TCP(XX)-Y |
SS-UFO10-240/200/150W-H -TCP(XX)-Y |
| Electrical |
Power |
100/80/60W |
150/120/100W |
240/200/150W |
| Voltage |
AC120-277V, 50/60Hz, 3470V/480V option |
| Light source |
SMD2835, Ra>80, 50,000hours |
| Efficancy |
140LPW |
| Color temp. |
3500K, 4000K, 5000K Single CCT |
| Driver |
PF>0.9, THD<20%, Flicker Free Technology, 6KV |
| Dimmable |
0-10V Dimming |
| Optical |
Diffuser |
PC, UGR<28 |
| Beam angle |
60°, 90°, 120° |
| Construction |
Housing Material |
Die-cast Aluminum |
| Option |
Sensor, Emergency Driver |
| Dimension |
12.40"x12.40"x8.15" |
13.19"x13.19"x8.15" |
15.47"x15.47"x8.31" |
| Mounting |
Installation |
Rings Type, Hook Type |
| Warranty |
Certification |
UL, DLC 5.1 Premium, IP65 Wet location |
| Warranty |
5 Years |
Features:
1. DLC 5.1 Premium with high luminous efficiency and low UGR;
2. Simple and stylish appearance;
3. Excellent heating dissipation;
4. Branded driver and LED’s;
5. Microwave Sensor, PIR Motion sensor, Motion Sensor with Bluetooth ;
6. Very complete accessories for option.
