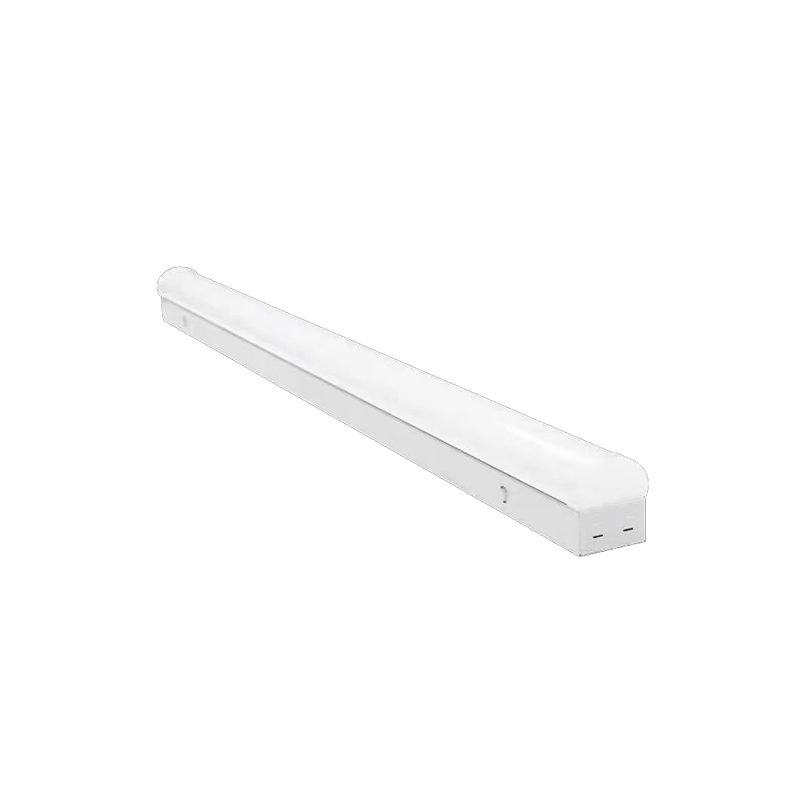

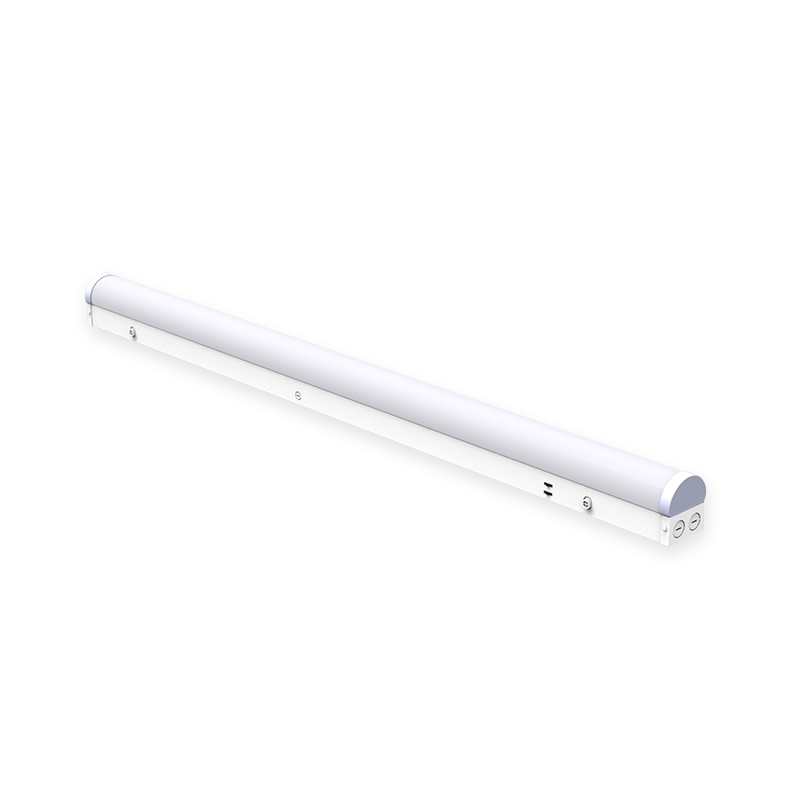

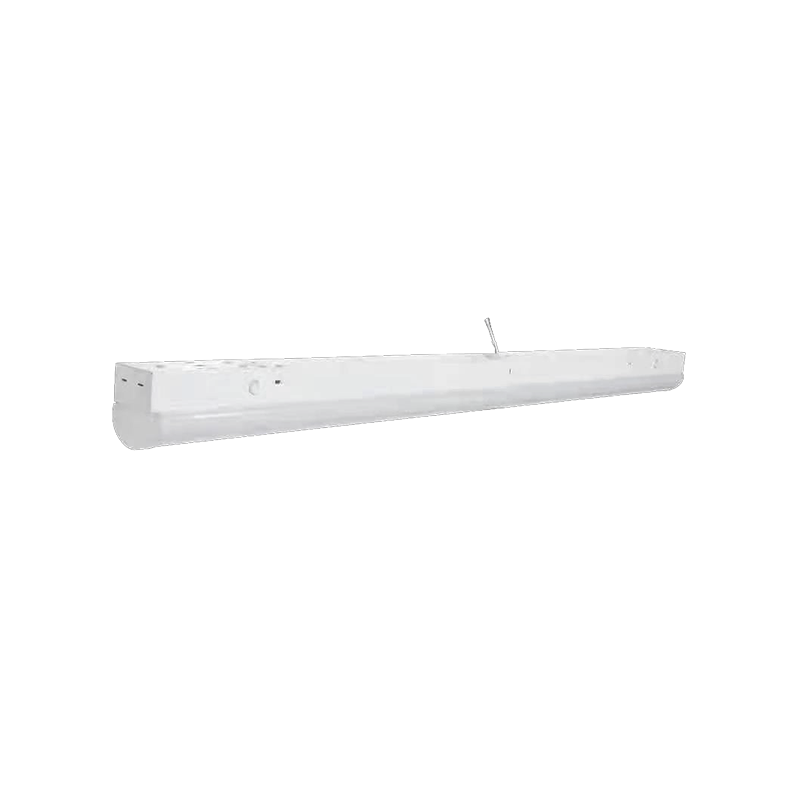

LED Linear Strip Light-G5

Name: LED Linear Strip Light-G5
Brand: Toptierleds, LTD
SKU: : SP05
Availability: InStock
Rating: 5 (1 reviews)

No.: SP05

Toptierleds LED linear strip light luminaires are high quality Chip, high CRI, input voltage AC120-277V, 347V option, Easy to install and operate, Light is soft and uniform, safe to eyes, Energy saving, long service life, Green and eco-friendly without mercury. Offered in multiple lengths, lumen and with a variety installation features, all of linear strip lights are DLC Premium listed, allowing the ability to maximize your energy savings and potentially obtain the highest rebates in your area.

Power:

20w, 24w, 32w, 40w, 50w, 60w, 64w, 70w, 80w

Voltage:

AC 120-277v, 50/60Hz, 347v option

Color:

3500k, 4000k, 5000k

Efficacy:

130LPW

Dimming:

0-10V dimmable

Certification:

UL, DLC, FCC, CE

Warranty:

5 years

GET A QUOTE

Add to Quote List View Quote List

Description

Toptierleds LED Linear Strip Light SP05 series are high quality Chip, high CRI, input voltage AC120-277V, 347V option, Easy to install and operate, Light is soft and uniform, safe to eyes, Energy saving, long service life, Green and eco-friendly without mercury. Offered in multiple lengths, lumen and with a variety installation features, all of linear strip lights are DLC Premium listed, allowing the ability to maximize your energy savings and potentially obtain the highest rebates in your area.

Products Code		SS-SP05-4FT40/32/24W-H-TCP(XX)	SS-SP05-8FT64/50/40W-H-TCP(XX)	SS-SP05-8FT80/70/60W-H-TCP(XX)
Electrical	Power	40/30/24W	64/50/40W	80/70/60W
	Voltage	120V-277V, 50/60Hz, 347V Option
	Light source	SMD2835, Ra>80, 50,000 hours
	Efficancy	130LPW
	Color temp.	3500/4000/5000k Selectable
	Driver	PF>0.9, THD<20%, Flicker Free Technology, 6KV
	Dimmable	0-10V Dimming
Optical	Diffuser	PC
	Beam angle	120°
Construction	Housing Material	Metal plate ( Housing Finishing White)
	Option	Sensor
	Dimension	48.03’’x2.95’’x3.26’’	95.98’’x2.95’’x3.26’’
Mounting	Installation	Surface Mounting, Suspending Mounting
Warranty	Certification	UL, DLC
	Warranty	5 Years

Housing:

White powder coated metal body
Available in 2ft, 4ft, and 8ft lengths
2ft: 20w
4ft: 24w/32w/40
8ft: 40w/50w/64w, 60w/70w/80w

LEDS:

High efficiency LED design
CRI >80
Up to 130 LPW
50,000 hours Lifespan
3500K, 4000K, or 5000K color temperatures

Driver:

120-277Vac or 120-347Vac
THD <20% Electrical
Power Factor >90%
0-10V Dimmable

Emergency backup option:

8W Built-in Emergency Driver, 90 minutes,
4FT&8FT Strip,not including 2FT.

Sensor Option:

Microwave Motion sensor

IP Rating:

IP20
Damp & Dry location

Ambient Temperature:

-4°F to +113°F (-20°C to +45°C)

Mounting method:

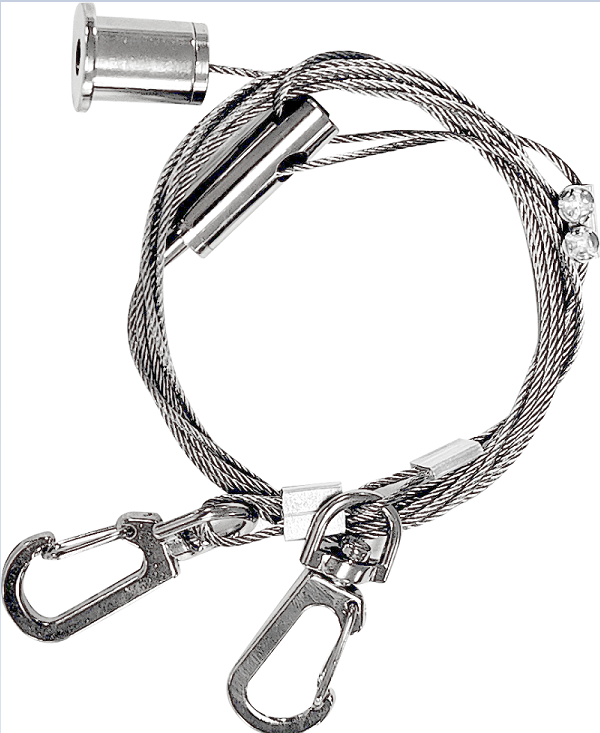

Can be surface mounted or suspended

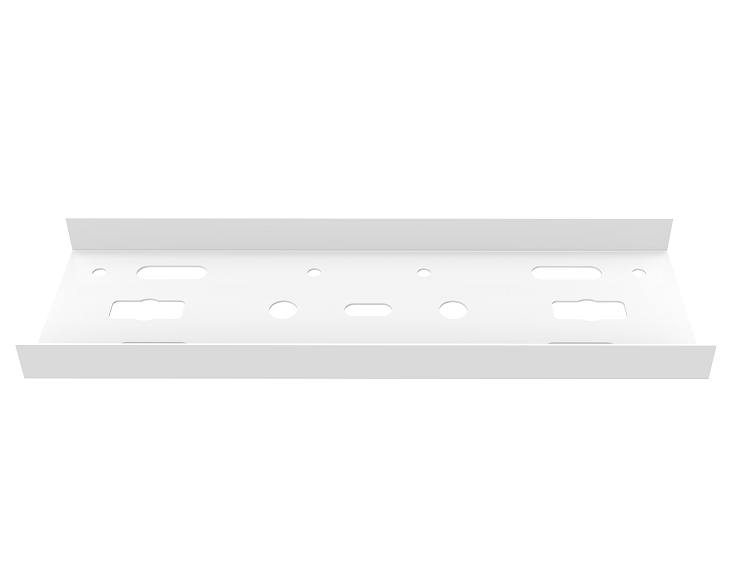

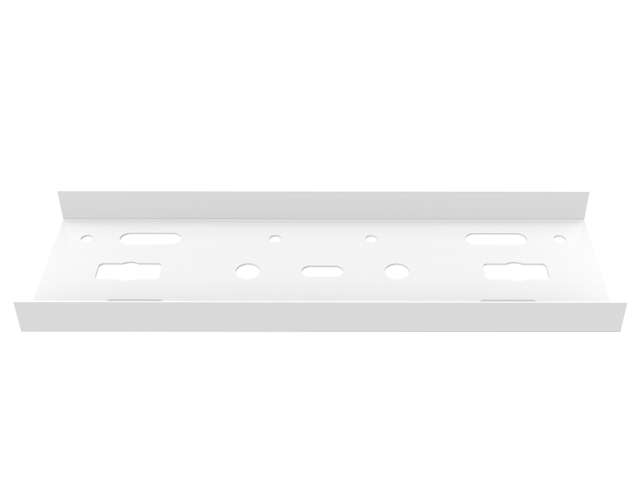

V-hook mounting bracket included

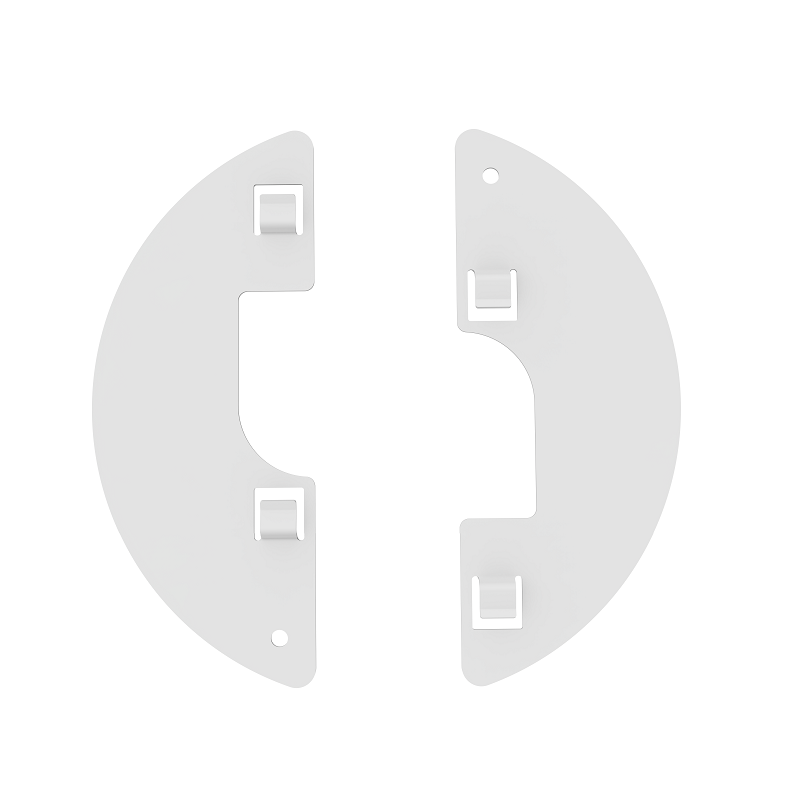

Fixtures can be joined end-to-end using the optional joiner bracket

Light engine and lens module feature toolless removal and secure snap-fit for fast, efficient installation
Connected by safety rope between cover and fixture

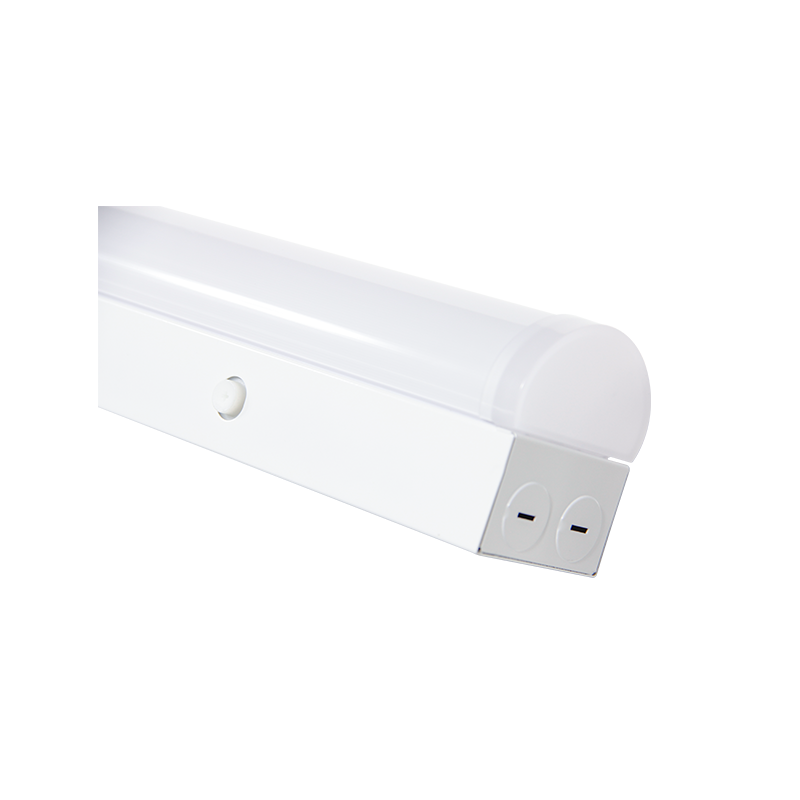

Knock-outs on both ends of fixture facilitate through wiring

Certification:

UL, cUL
IESNA LM79 & LM-80 Testing
DLC

5-Year Limited Warranty

Applications:

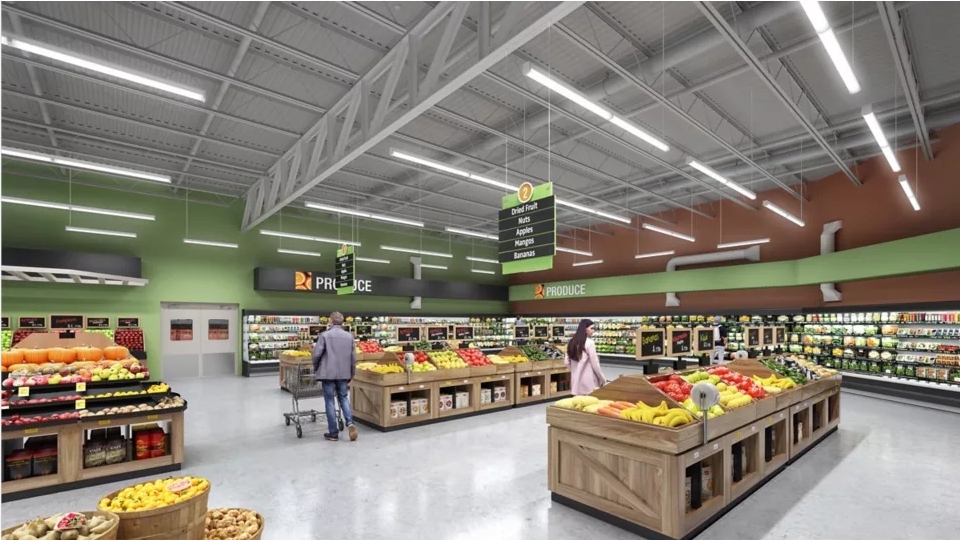

Perfect commercial or industrial solution for retail, hospital, spuer market, manufacturing, warehouse, and high bay applications.
