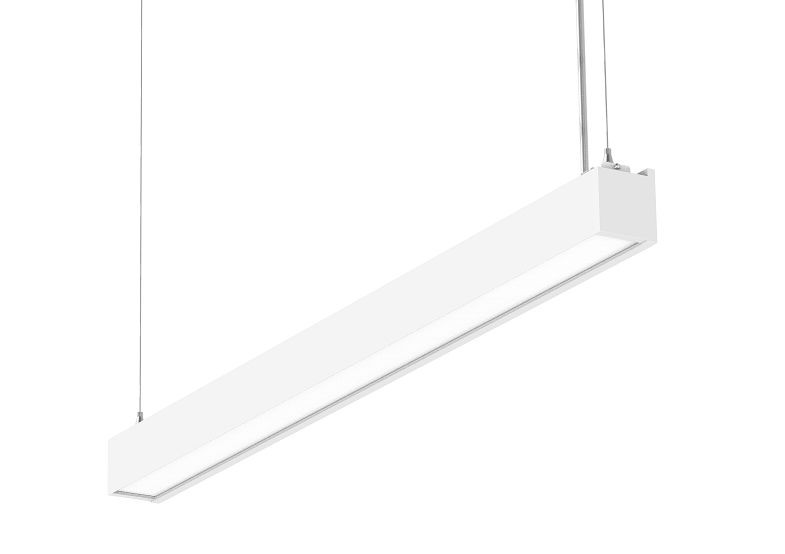

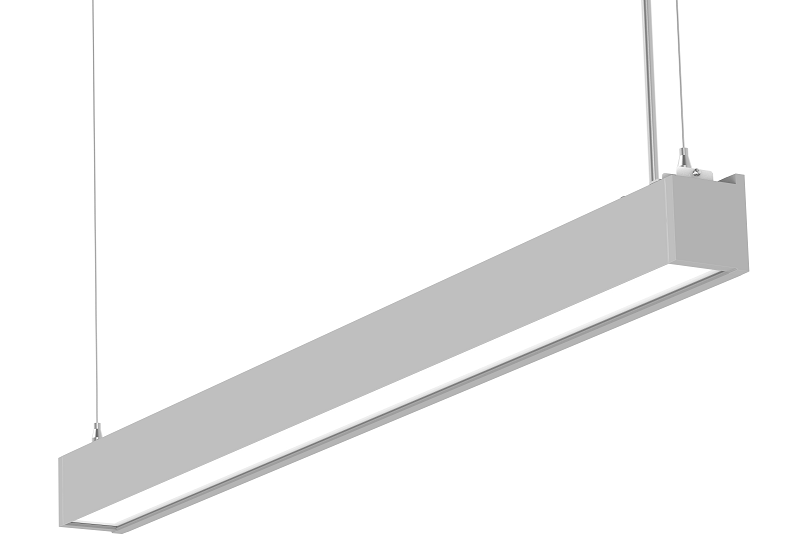

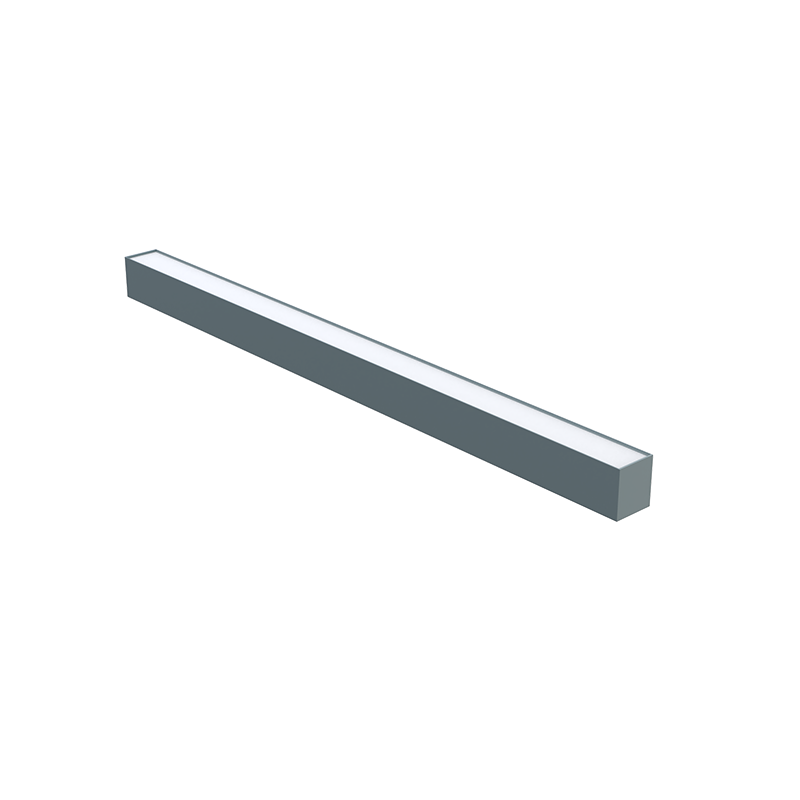

LED Architectural Linear Lighting with its slim design,this new linear strip light seamlessly blends flat high quality housing and precision optics to produce a sleek,subtle aesthetic that meets most office ceiling application needs,it is ideal for office spaces, supermarkets,and meeting rooms.
| Products Code |
SS-LS01-24/32/40W
(100% down) |
SS-LS01-30/40/50W
(15W UP 35W Down) |
SS-LS01-50/60/70W
(100% Down) |
SS-LS01-50/60/70W
(21W up and 49W Down) |
SS-LS01-60/80/100W
(100% Down) |
SS-LS01-60/80/100W
(30W UP 70W Down) |
| Electrical |
Power |
40/32/24W |
50/40/30W |
70/60/50W |
70/60/50W |
100/80/60W |
100/80/60W |
| Voltage |
AC 120-277V, AC120-347V Option, 50/60Hz |
| Light source |
SMD2835, Ra>80, 50,000hours |
| Efficancy |
115LPW |
| Color temp. |
3500/4000/5000K |
| UGR |
UGR<19 |
| Dimmable |
0-10V Dimming |
| Optical |
Diffuser |
PMMA/PC |
| Beam angle |
120° |
| Construction |
Housing Material |
Die-cast Aluminum |
| Option |
Connectors (Mechanical Connection)：L-Shape, T-Shape, X-Shape |
| Dimension |
48.00’’x2.75’’x3.14’’ |
96.00’’x2.75’’x3.14’’ |
| Mounting |
Installation |
Stainless Steel Aircraft Ropes, Wall Mount Kits, Canopy Suspension Kits. |
| Warranty |
Certification |
UL, DLC |
| Warranty |
5 Years |

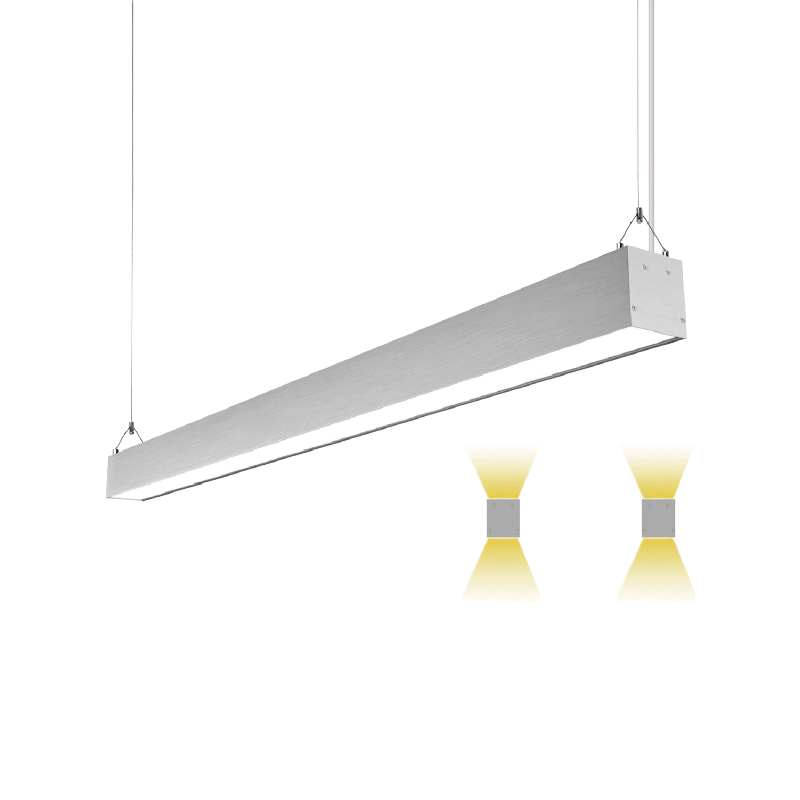

This LED Architectural Linear Light Series comes in both standard down lighting and DID (Direct Indirect) lighting options.
Power:
| Size |
Power |
Lumen |
| 4ft |
40/32/24W |
4600/3680/2760lm |
| 4ft |
50/40/30W |
5750/4600/3450lm |
| 8ft |
70/60/50W |
8050/6900/5750lm |
| 8ft |
100/80/60W |
11,500/9200/6900lm |
Color: 3500K, 4000K, 5000K selectable

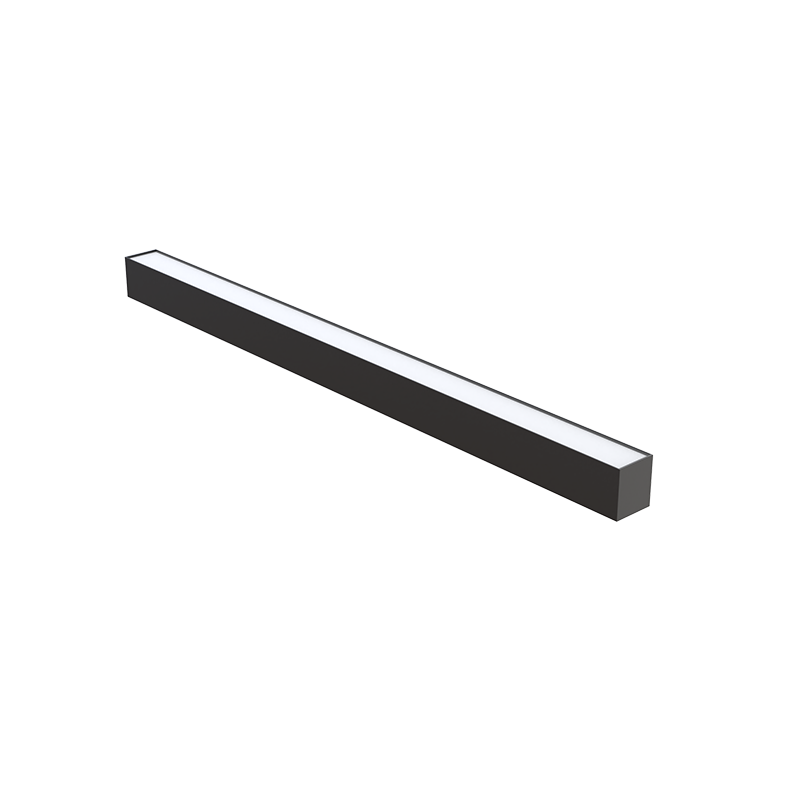

Housing:Available in Black, Silver and White polyester powder coating, outdoor powder coat with excellent corronsion resistance.
LEDS: Bridgelux, CRI80, 115lm/w, 50,000 hours lifespan.
Driver:AC120-277V/120-347V Input Voltage
0-10V dimming
PF>0.9
Distribution:95°
Lengths:The Linear slot product families are available in 4’ and 8’ (nominal) lengths. Longer fixture rows are available and will be configured per ALL factory specifications; rows are configured with 4-foot & 8-foot fixtures.
Certification list:
UL, DLC5.1 Premium
3CCT selectable:
Mounting Method/Hardware:
- Rope Suspension Installation
- Canopy Suspension Installation
Accessories:
- Emergency Driver option
- Mounting Options- X linear lamp, T linear lamp, L linear lamp.
Application: school, hospital, super market, office and warehouse etc.
